Background

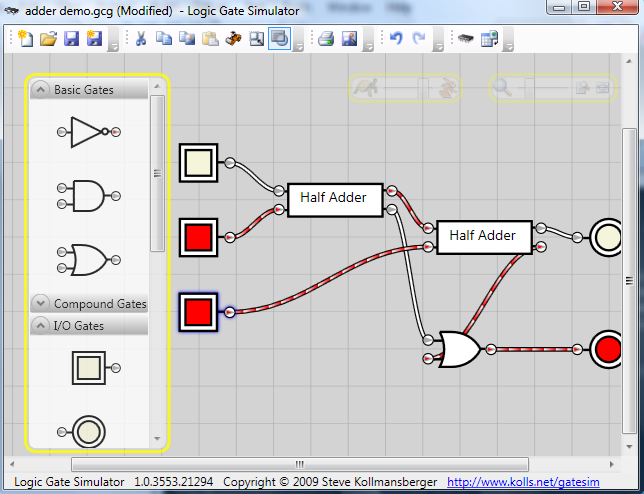

Logic Gate Simulator is an open-source tool for experimenting with and learning about logic gates. The simulator tool was originally designed for CIS students at South Puget Sound Community College but is free for anyone to use and modify under the GPL v3.

Logic Gate Simulator is written in C#/WPF using .NET 4

Watch a 3 minute video demonstration

Dave Jordan has implemented a multiplier, download am.gcg

Selected Features

Graph circuit activity over time
Drag-and-drop gate layout and wiring
User created "integrated circuits" for re-use
Viewing the activity inside ICs during simulation
Adjustable simulation speed and zoom
Print and export as image
Cut/copy/paste
Inline ICs and flatten entire circuits
in 1.4: A variety of visual modes:
including isolating partial circuits to show use,
hiding intermediate gates,
and not showing different colors for true/false (useful for preparing circuits for use in documents).

Similar Projects

Logic Gate Simulator is one of many similar learning and simulation systems, such as:

Logicly (the inspiration for this project) (logicly has been rewritten as a desktop app)
Cedar Logic
LogiSim
QUCS

Like Logic Gate Simulator?

Available as a Windows installer, a no-install executable, or full source code. Downloads hosted by SourceForge.

You will need the .NET Framework if you don't already have it installed.

Current version is 1.4, released on 14 Jun 2011. See changes.
